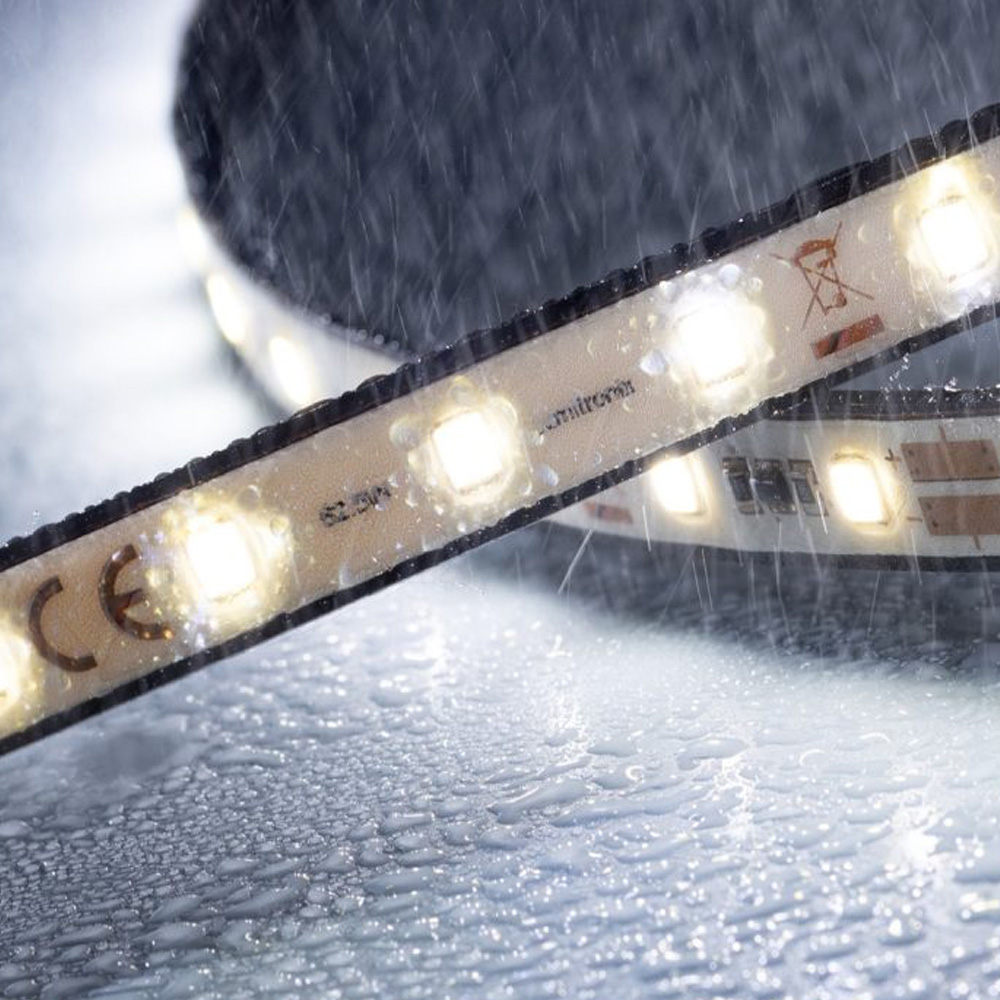

LumProtect IP67 LumiFlex3080 Seoul LED Strip warm white CRI80 3000K 13900lm 24V 43 LEDs/ft 16.4ft reel (847lm/ft 5.85W/ft)
The LumProtect IP67 LumiFlex3080 combines the ultra-bright, high-efficacy performance of our LumiFlex3080 light engine with advanced German-engineered polymer lamination waterproofing.
- IP67 waterproof and dustproof protection via LumProtect heat-and-pressure polymer lamination (submersible up to 3.28 ft for 30 minutes)
- Warm white 3000 K color temperature
- Color Rendering Index: CRI 80+ with Seoul Semiconductor binning for uniform white light
- Ultra-high brightness: 13900 lm per 16.4 ft reel / 847 lm per foot (145 lm/W luminous efficacy)
- High-density layout: 43 Seoul Semiconductor LEDs per foot / 700 LEDs per 16.4 ft reel with a 120° beam angle
- Power rating: 5.85 W per foot / 96 W per 16.4 ft reel
- 24 V DC constant-voltage operation with integrated linear current control for consistent brightness across the entire 16.4 ft length
- Divisible every 1.97 in at marked cut intervals (requires proper IP67 end-cap sealing if cut on-site)
- Precision engineered and Made in Germany using Reel-to-Reel (R2R) flex technology
- Buy 100 for £222.41 each and save 17%
The LumProtect IP67 LumiFlex3080 combines the ultra-bright, high-efficacy performance of our LumiFlex3080 light engine with advanced German-engineered polymer lamination waterproofing. Rated IP67 for complete dust-tight protection and temporary immersion in water up to 3.28 ft deep for 30 minutes, this ruggedized flexible LED strip brings commercial-grade general illumination to damp, wet, outdoor, and washdown environments.

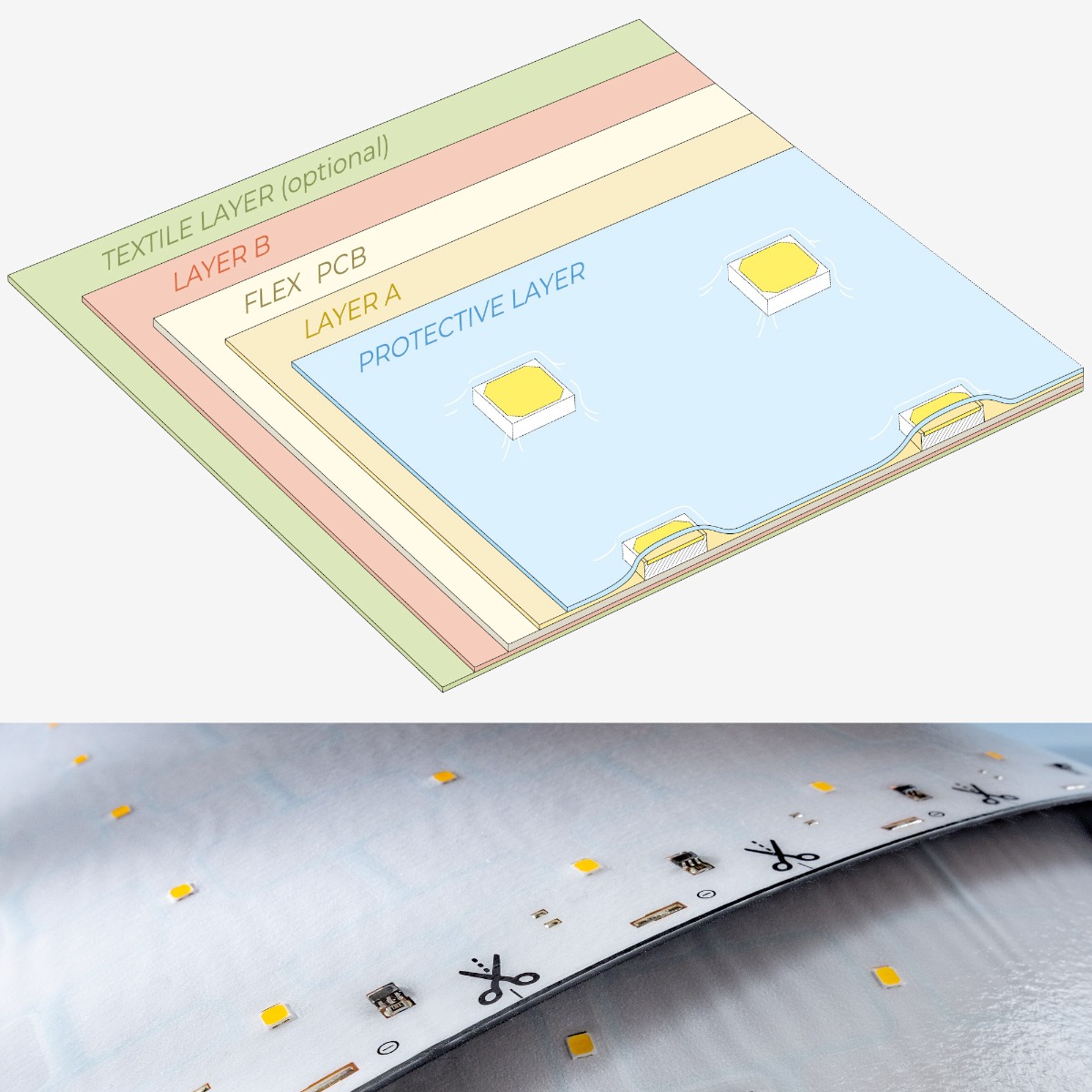

Unlike conventional silicone-extruded strips that yellow, crack, or trap air bubbles, our LumProtect lamination process bonds multiple thin, tough polymer layers under heat and pressure to both sides of the flexible PCB—fully encapsulating all components without air pockets while maintaining a slim profile. This warm white 3000 K version delivers 13900 lm per 16.4 ft reel (847 lm/ft) at 5.85 W/ft (96 W per 16.4 ft reel) with 145 lm/W efficacy, 43 Seoul Semiconductor LEDs per foot (700 LEDs per reel), integrated linear current control, and 3.94 in factory-sealed connection cables at each end.
Features of the LumProtect IP67 LumiFlex3080 Seoul LED strip
- IP67 waterproof and dustproof protection via LumProtect heat-and-pressure polymer lamination (submersible up to 3.28 ft for 30 minutes)
- Warm white 3000 K color temperature—learn more in our color temperature guide
- Color Rendering Index: CRI 80+ with Seoul Semiconductor binning for uniform white light
- Ultra-high brightness: 13900 lm per 16.4 ft reel / 847 lm per foot (145 lm/W luminous efficacy)
- High-density layout: 43 Seoul Semiconductor LEDs per foot / 700 LEDs per 16.4 ft reel with a 120° beam angle
- Power rating: 5.85 W per foot / 96 W per 16.4 ft reel
- 24 V DC constant-voltage operation with integrated linear current control for consistent brightness across the entire 16.4 ft length
- Pre-wired with 3.94 in sealed lead cables at both ends for convenient waterproof power connection
- Divisible every 1.97 in at marked cut intervals (requires proper IP67 end-cap sealing if cut on-site)
- Fully dimmable with compatible 24 V DC PWM dimmers, 0–10 V, DALI, and Casambi wireless control systems
- Double-sided, heat-conducting adhesive backing for straightforward mounting
- Long service life: L80B10 lifetime of at least 60,000 hours (up to 55 years in residential use at 3 hours/day, or 14 years in commercial use at 12 hours/day)
- Precision engineered and Made in Germany using Reel-to-Reel (R2R) flex technology
- Backed by a 5-year commercial warranty
Waterproof high-output architectural linear lighting
Delivering 847 lm/ft, the LumProtect IP67 LumiFlex3080 serves as a primary illumination source for exterior and moisture-exposed linear lighting applications—far outperforming low-output decorative waterproof tapes. The 3000 K warm-neutral white tone balances inviting warmth with crisp visibility, making it ideal for commercial kitchens, outdoor retail storefronts, hotel exteriors, bathrooms, and architectural landscape accents. For guidance on optical diffusion and aluminum channel integration, explore our guide to creating seamless lines of light and linear fixture design basics.
The tight 43 LEDs/ft pitch and joint-free 16.4 ft R2R PCB create a smooth, continuous line of light inside outdoor-rated aluminum channels (such as Aluflex or Alumax) with opal diffusers. Learn more about selecting white light metrics in our CRI guide.
Moisture-resistant cove and indirect ambient lighting
The LumProtect IP67 LumiFlex3080 excels in cove and indirect lighting in bathrooms, indoor swimming pools, spas, commercial kitchens, covered exterior soffits, and coastal buildings where humidity, condensation, or dust would compromise standard IP20 strips. In 3000 K, the high-output indirect wash delivers clean, warm-neutral illumination for moisture-prone architectural coves, kitchens, and covered exterior soffits.
Commercial troffers, vapor-tight luminaires, and backlit signage
For LED troffers, vapor-tight linear fixtures, and backlit architectural panels, the IP67 LumiFlex3080 provides a self-protected, high-lumen light engine that resists moisture ingress, dust accumulation, and cleaning sprays. Multiple strips can be mounted in parallel behind a diffuser to illuminate commercial canopies, food-service prep zones, and architectural lightboxes with uniform, flicker-free brightness.
Installation, waterproofing integrity, and electrical integration
The strip operates on a regulated 24 V DC constant-voltage power supply and features 3.94 in factory-sealed cables at each end. Its heat-conducting double-sided adhesive tape simplifies mounting onto clean aluminum profiles or smooth structural surfaces. While the strip can be shortened every 1.97 in at marked intervals, any field-cut ends and solder joints must be sealed with waterproof end caps and neutral-cure silicone/adhesive to maintain the IP67 rating.
For extended runs, size supply conductors appropriately to prevent voltage drop and select a UL-listed / Class 2 24 V DC LED driver with a 15–20% power reserve above the 96 W per 16.4 ft reel load.
Who we are and our German quality promise
With over 20 years of specialized experience in LED technology, we engineer and manufacture professional LED strips, modules, and custom light engines in Germany. Our flexible LED strips are produced in our state-of-the-art, ISO 9001, ISO 14001, and ISO 45001 certified Reel-to-Reel (R2R) Flex production facility. Using continuous fabrication on flexible substrates up to 328 ft in length, plasma direct metallization, automated DEK solder paste printing with HawkEye optical inspection, and precision <0.4 mil (<0.0004 in) laser/inkjet batch traceability, our R2R process minimizes interconnects, eliminates manual handling variance, reduces material waste, and guarantees unmatched mechanical durability and batch-to-batch consistency.
Whereas low-cost commodity LED tapes often suffer from rapid lumen depreciation—losing up to 60% of their brightness within 10,000 hours—and deliver under 80 lm/W in real-world operation, our German-engineered LumiFlex strips combine top-tier LEDs from world-leading manufacturers with linear current regulation to deliver three to five times higher effective illumination and dependable 60,000-hour performance. Beyond our ready-to-ship portfolio, we support OEMs, lighting designers, and commercial project teams with custom PCB layouts, specialized spectra, IP67 LumProtect encapsulation, prototyping, and full-scale series production. Learn more about Lumistrips and our German LED manufacturing capabilities.
| SKU | 39224IP67 |
|---|---|
| Colour | Warm White |
| Colour Temperature | 3000K |
| Colour Rendering Index | 80 |
| Luminous Flux per meter | 2780 |
| Bright like (W) | 150 |
| Luminous Flux Typ (lm) | 13900 |
| Efficacy (lm per W) | 144 |
| Energy Class 2022 | D |
| Power (W) | 96 |
| Dimmable | Dimmable |
| Viewing Angle | 120° |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 55 |
| Product lifetime (h) | 60000 |
| Lifetime for commercial, 12h daily (yrs) | 14 |
| Manufacturer Product Code | 39924IP67 |
| Product Family | LumiFlex3080 |
| Strip Type | Flexible |
| Strip LEDs per meter | 140 |
| LEDs number per sales unit | 700 |
| Dimensions | 5000x10x1.57 |
| Dimensions: Length (cm) | 500 |
| Dimensions: Width (mm) | 10 |
| Dimensions: Height (mm) | 1.57 |
| Can be cut at (mm) | 50 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4062986003440 |
| Forward Voltage Typ (V) | 24 |
| Availability beyond shown stock: | YES |
