Build Your Own LumiBar3098+ Zhaga White LED Modules, Seoul Sunlike LEDs, CR98, 2700-6500K, 350-700mA
Use this specialized form to order your custom LumiBar-3098+ SunLike LED modules.
- More details below
- Terms & Conditions apply
- Information with * is required.
Build Your Own LumiBar-3098+ SunLike LED Strip
- LumiBar-3098+ is equipped with 48 or 52 Mid-Power SunLike LEDs from Seoul Semiconductor, with CRI98+ the highest performance on the market

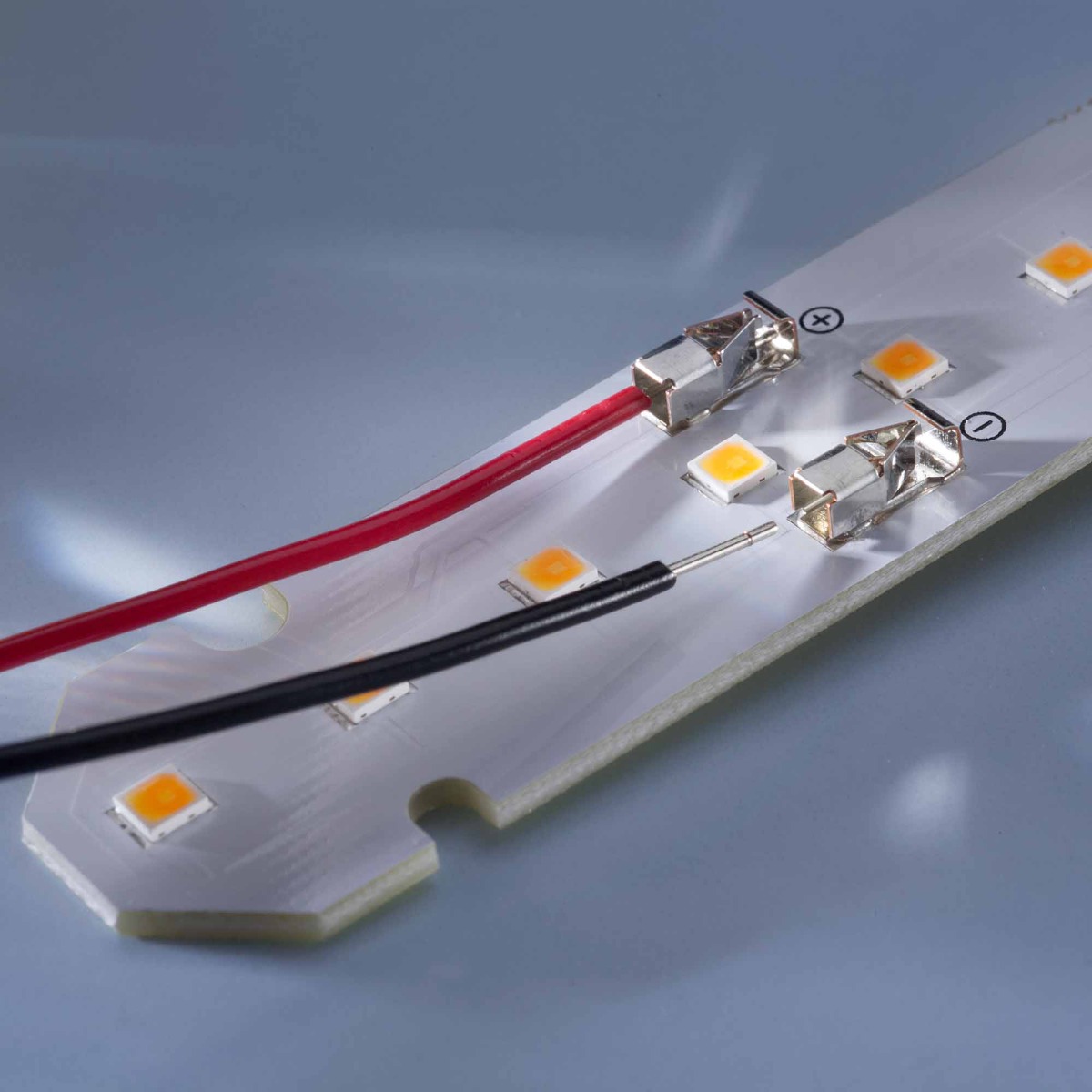

- Zhaga L56W2, 560x20mm LED strip with versatile and easy-to-use plug-and-play connection system
- Color temperature options: 2700K to 6500K
- Constant Current, 350mA or 700mA
The LumiBar 3098+ LED Module Zhaga Sunlike brings the natural spectrum of sunlight to your indoor spaces. With SunLike™ TRI-R™ technology from Toshiba-Seoul Semiconductor, this LED strip provides vibrant colors that are as realistic and vibrant as they are under natural daylight. This natural light spectrum is known to improve our well-being, helping us to become more productive and concentrated. It has an important application in various industries, including health, fashion, art, horticulture, and more.
The LumiBar 3098+ features high-quality SunLike LEDs in 3-step MacAdam binning, which provide a smooth light with a homogeneous white shade. The narrow LED pitch further ensures there are no visible light points, making the light even more uniform. The slim design of the LED strip means it is easy to install and compatible with common luminaires, and can be connected without soldering. It is ideal for use in narrow luminaires for commercial, industrial, or workplace lighting.
The 56 cm long Sunlike LED strip can be manufactured in two variants with 48 LEDs functioning at 16V & 700mA and 52 LEDs @at 39V & 350mA respectively, providing installation flexibility. It does not require a heat sink and needs to be powered by a constant current driver.
The LumiBar 3098+ LED strip provides a full spectrum white with a CRI of 98+, offering highly realistic color rendering, high-contrast vision, and better reading. It also has virtually no UV light, making it ideal for use in museums, art galleries, and other light-sensitive applications.
The LumiBar 3098+ is 100% made in Germany and comes with a 5-year warranty. It is designed according to the Zhaga standard book L56/28/14(W2), making it easy to use and integrate into your existing lighting setup. The LED strip has an ultra-high brightness up to 1280 lumens per module, 2285 lumens per meter (696 lumens per foot), and consumes only 11.8 watts per module. Its long lifetime and low maintenance cost make it a cost-effective choice for your lighting needs
Custom LED Solutions: Tailored Lighting Excellence
Don't settle for generic LED solutions when our customization service can match your unique needs, avoiding the compromises associated with off-the-shelf products. With over 20 years of industry expertise, we manufacture innovative, quality, and high-performance LED solutions in Germany, tailored to your specifications.
Simplified Customization Process & Professional Support
We make designing LED lighting easy with this specialized process to build your own LED modules according to Zhaga Book 7 standard, in white, with options covering size, specifications, and electrical characteristics.
Starting a custom LED project might seem challenging, but we are here to help, offering comprehensive support for selecting LEDs, drive modes, controls, thermal management, and connectivity.
Begin Your Custom LED Project
Ready to transform your vision into reality with the perfect LED strips? Order now and let us illuminate your path to innovation, ensuring your project shines brighter than ever.
Custom LED Strip Order Process explained & Technical details:

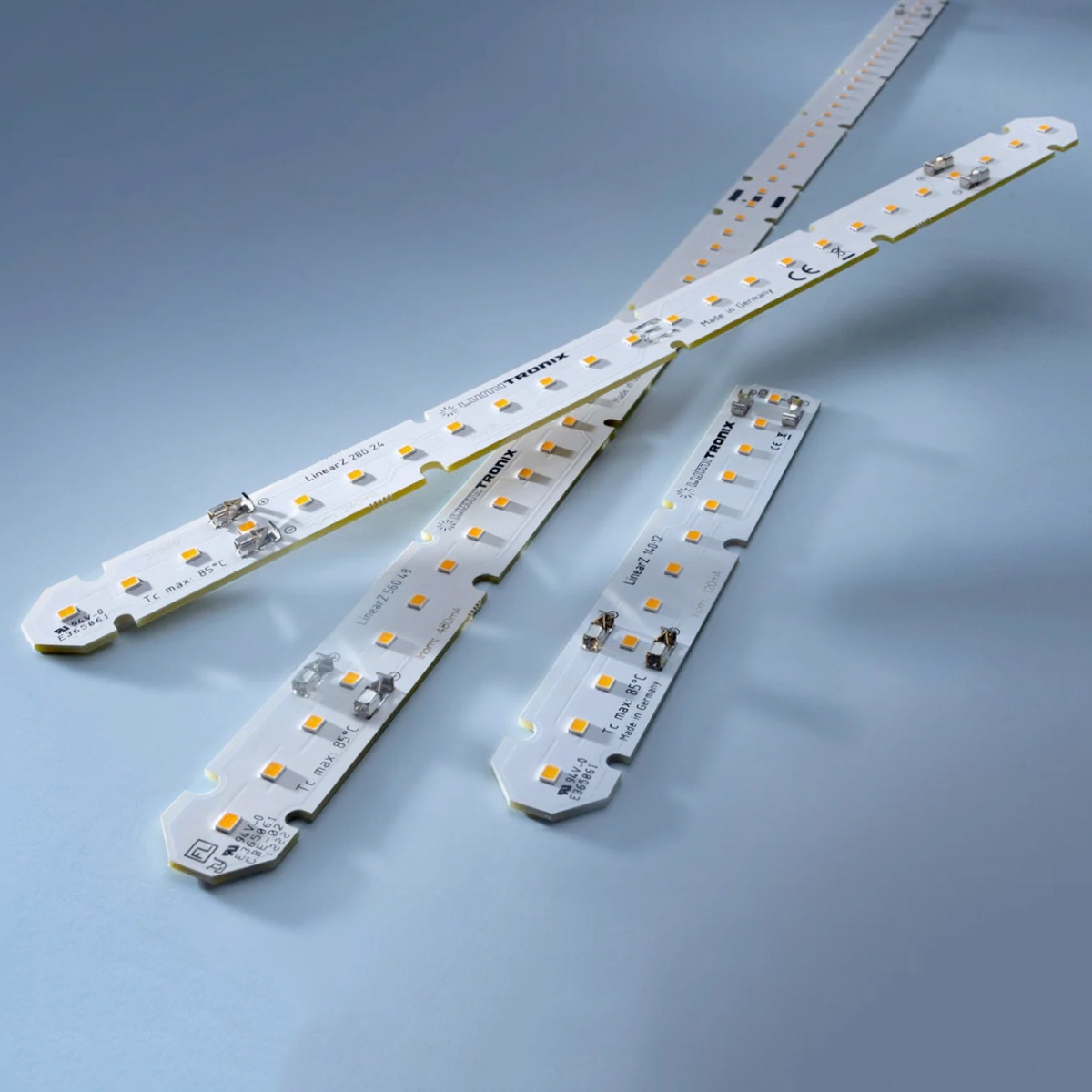

Build Your custom-made LumiBar 3098+ LED Modules, Made in Germany, with Seoul Semiconductor LEDs, on FR4 PCB, in Zhaga Book 7 standard dimensions for linear LED modules.
Step 1: Order Quantity (pcs)
How many pieces do you need. While there is no MOQ, we recommend at least 100 pieces of 560mm LED modules.
Step 2:
The LED Quantity per Module (pcs). Choices include 48 and 52 LEDs per module and determines the current and voltage, as follows:

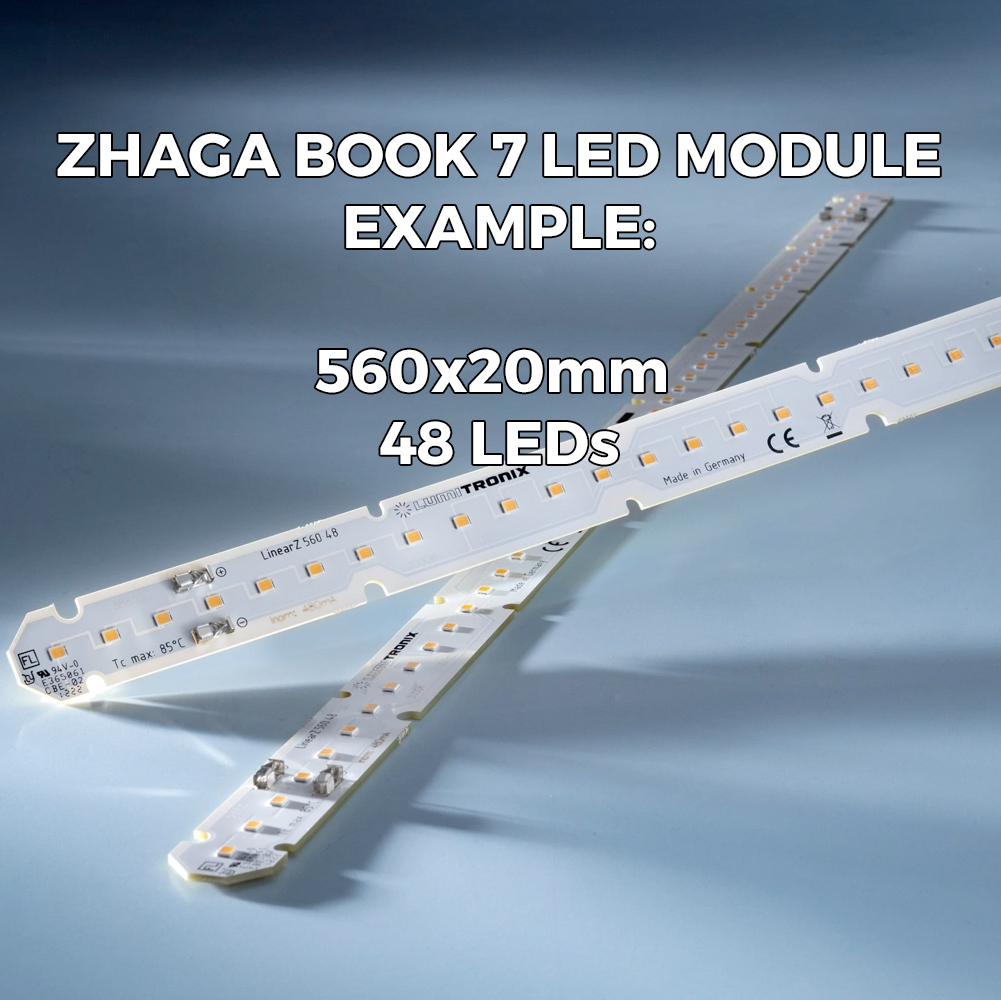

- 48 LEDs: LED module will function at 16V with a 700mA constant current driver. Up to 5 modules can be connected in series to a constant current LED drivers such as Mean Well LCM-60, SKU 95236.

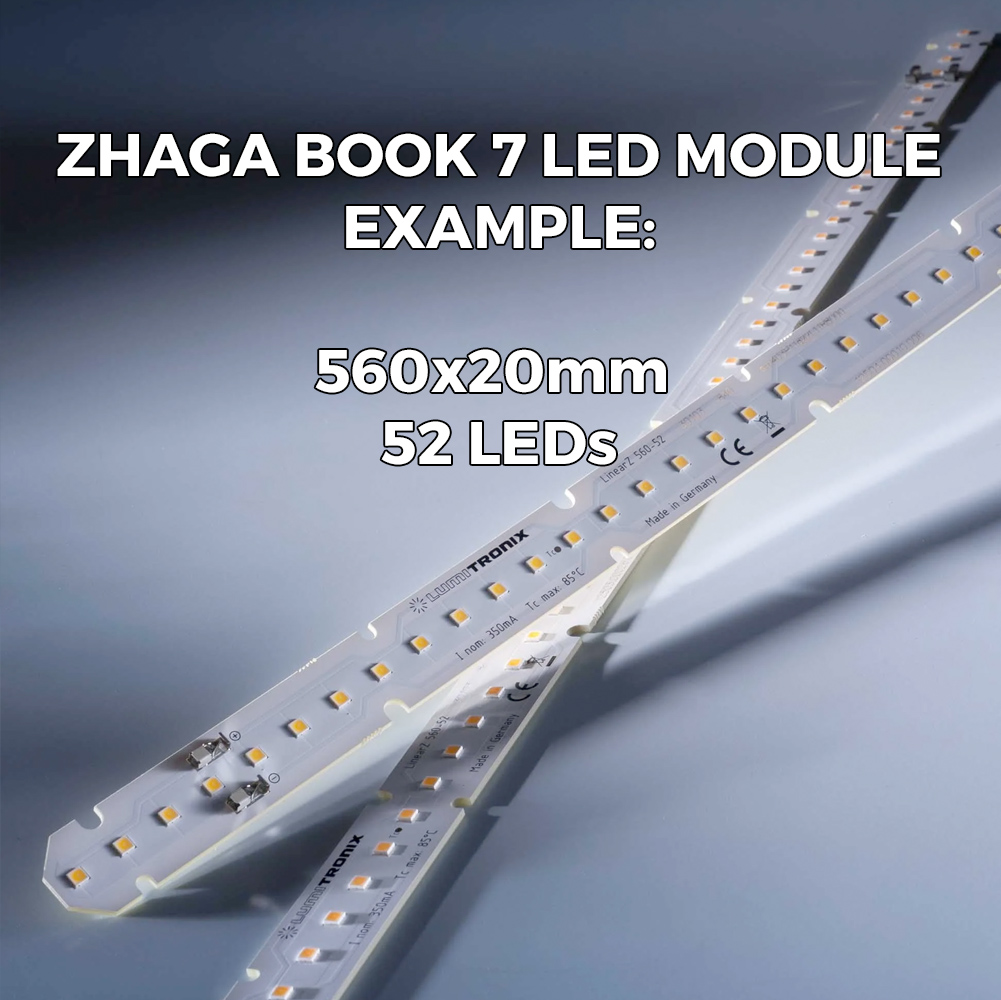

- 52 LEDs: LED module will function at 39V with a 350mA constant current driver. Up to 4 modules can be connected in parallel to a constant current LED drivers such as Mean Well LCM-60, SKU 95236.
We recommend that the total number of LEDs that will be used to build your custom led strip to be as close as possible to a multiple of 5000.

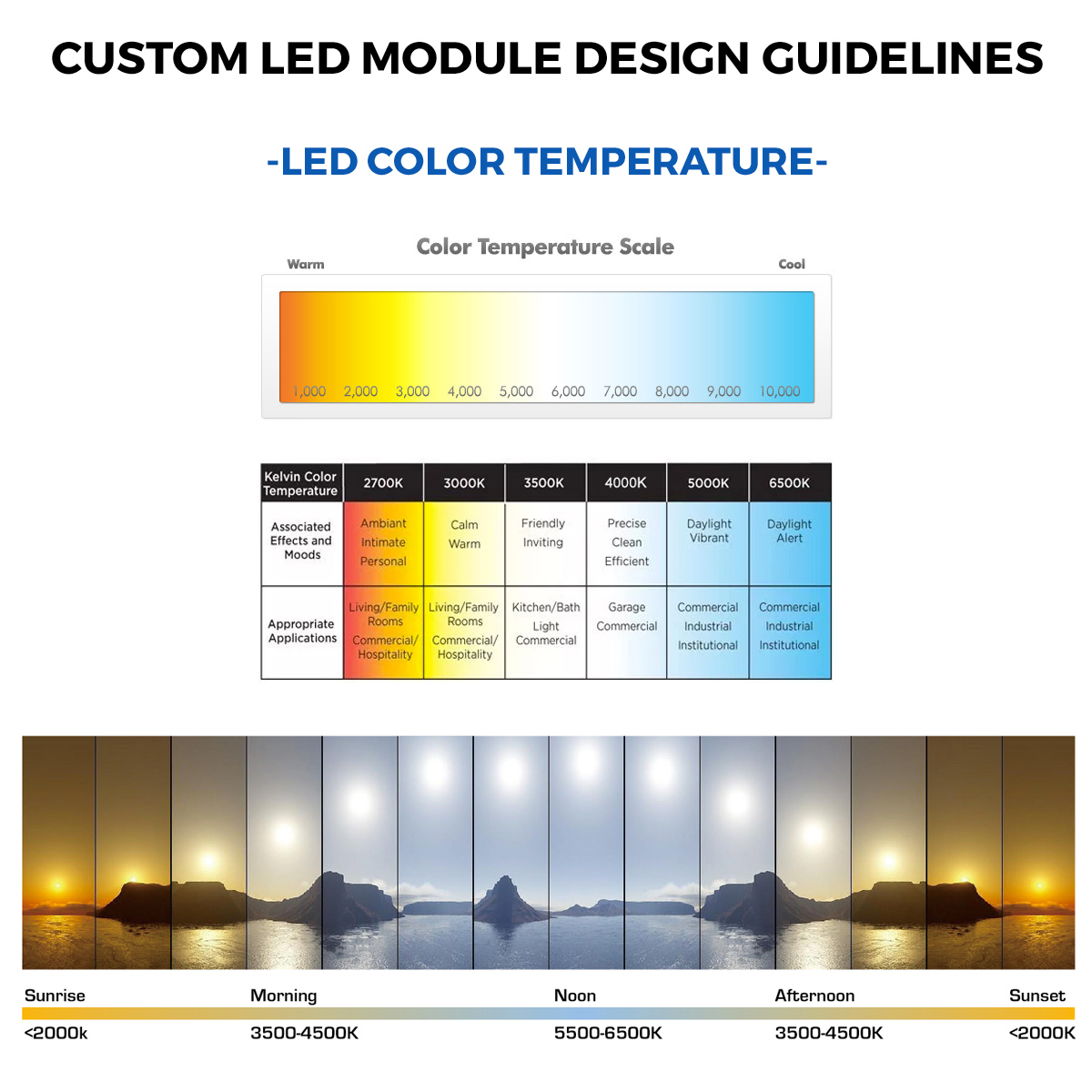

Step 3: LED Color temperature
Different color temperatures create different visual effects and are appropriate for different environments. Color temperature is measured in Kelvin (K) on a scale from 'warm' to 'cool': The 'warmer' the light, the lower the number of Kelvin. The 'cooler' the light, the higher the number of Kelvin. You can read more about the recommended color temperature for a project in our blog.
Step 5: Scope of Delivery
The order process and online payment can be made for the full Order Quantity (meters) or for drawing, design or samples. Based on your choice, the scope of delivery and the payment will be:
- Order Quantity (pcs): the full quantity entered at step 1, including drawing, design and samples.
- Design and Samples Only: Drawing, Design and 5 samples of maximum 50 cm each, for the LED strip with the specifications from the order.
- Drawing Only: The drawing of the LED strips, including:
- Dimensional drawing, with position of the LEDs, solder pads, current regulation components, printed information on the PCB.
- Summary of the main characteristics (technical data of the cutting unit), including dimensions, operation mode, voltage, current, power, color temperature, luminous flux, efficiency, CRI, LED type.
- PCB information: base material, layers, copper.
| SKU | byo_n7000s |
|---|---|
| Brand | Lumistrips |
Custom LED Module Order Terms & Conditions
When your order is confirmed, we will manufacture the custom LED strip or module at our factory in Germany, based on the specifications you provided. Payment is required for order confirmation. Orders with successful online payments are considered confirmed.
Here’s how the timeline looks once we confirm your order:
- Design validation: we will check your order details and additionally supplied information (uploaded file), within 5 working days.
- Design Draft: You'll see the first drawing of your custom LED strip or module within 2 weeks.
- Datasheet: After the drawing gets your approval, we'll create for you the custom LED strip datasheet, within 2–4 weeks.
- Samples: You may request to receive samples, when you order or receive the datasheet. This option has an extra cost and adds to the total delivery time of your order. Details will be provided at the time we receive your request.
- Mass Production: Once you approve the datasheet and/or samples, we'll start the full production, which will take 6–10 weeks.
With us, your investment in custom LED technology is transparent, with clear steps and predictable timelines.
Custom order changes, cancelation, refunds, returns:
1. Changes to the specifications of the module can be made during the Design Draft process. These changes can be caused by incorrect data supplied to the online order system, such as technical specifications that are impossible to produce or wrong data.
For LED modules with custom dimensions, the decimal separator is the dot (.)
Changes that lead to additional costs will result in the recalculation of the order value.
2. The custom LED module order can be canceled:
- Within 5 working days for a 5% cancelation fee
- After receiving the design draft for a 15% cancelation fee
- After receiving the datasheet for a 25% cancelation fee
- After receiving the samples for a 25% cancelation fee + samples cost.
Once the datasheet and/or samples are approved, and mass production is initiated, the order cannot be canceled. Custom-made LED products cannot be returned. We reserve the right to cancel orders at any time, up to the point of delivery. Orders canceled by our decision will be refunded in full. We will not be responsible for any costs or associated damages caused by order cancelation or delays in delivery.
Custom LED Module warranty:
We provide a 5-year warranty for all custom LED modules, based on our standard warranty terms.
The operating temperature is a crucial facture in LED module lifetime. The maximum operation temperature (TC) will be specified in the design stage and written on the product and datasheet. It is important that you use thermal management to prevent exceeding of the maximum value. If it is not possible, you have to inform us during the design stage.
Shipping Methods and Cost:
We also accept shipping via your express account with DHL, TNT, UPS or FedEx. After we receive your order please contact us via email with this choice.
For bulky parcels with custom LED products and accessories, the standard shipping costs added via the online order process might not fully cover the safe and timely delivery of your order. If we discover, before shipping your order, that the shipping cost is greater than already paid or what we can cover for free shipping, we may ask you to cover the extra cost. In case of orders the orders free shipping, the maximum ship cost covered by us is 40€.
Custom LED Module certifications:
Built in Germany, the custom LED modules have the following certifications:
- CE
- ROSH
- REACH
On demand, other certifications ca be provided (for a price):
- UL
- CSA
