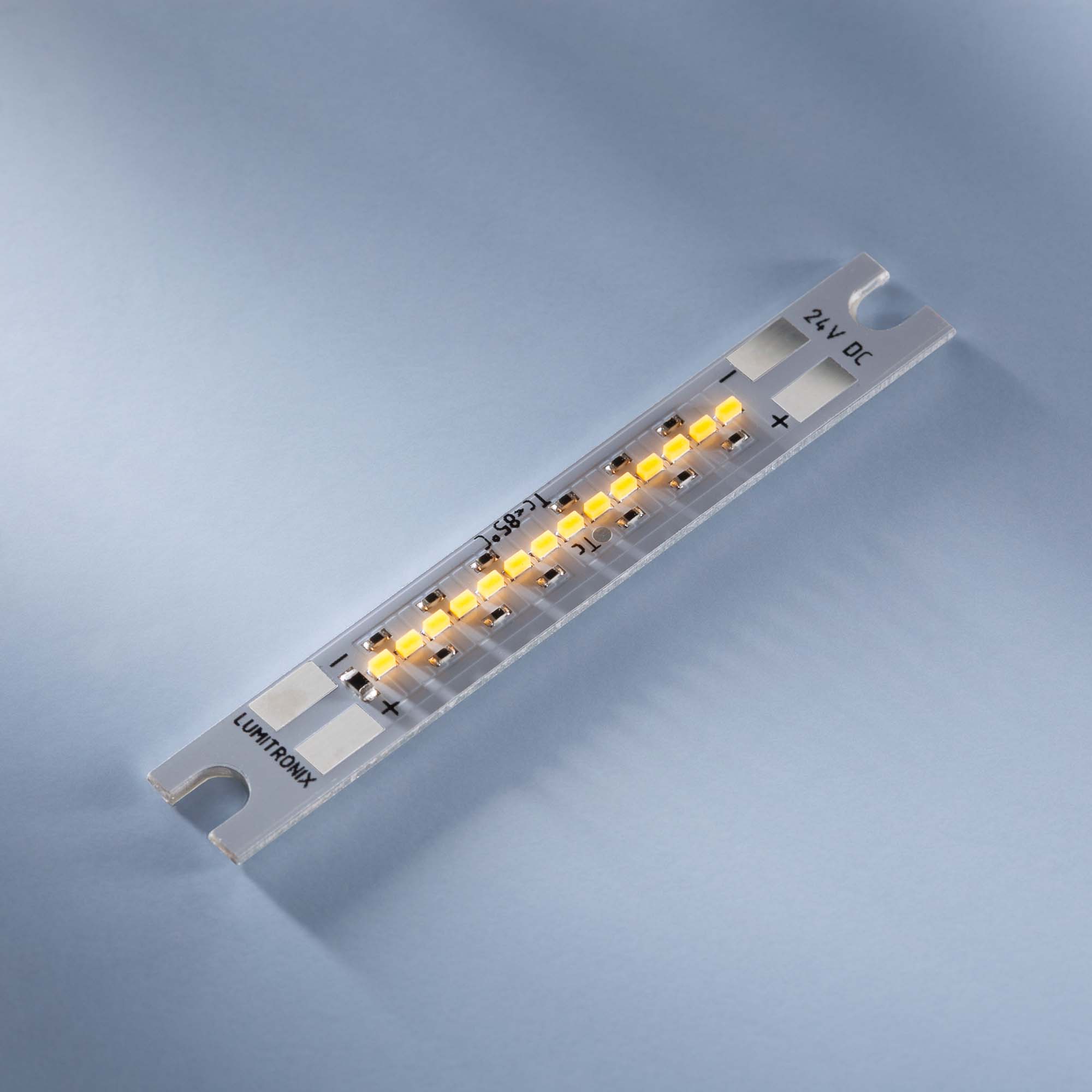

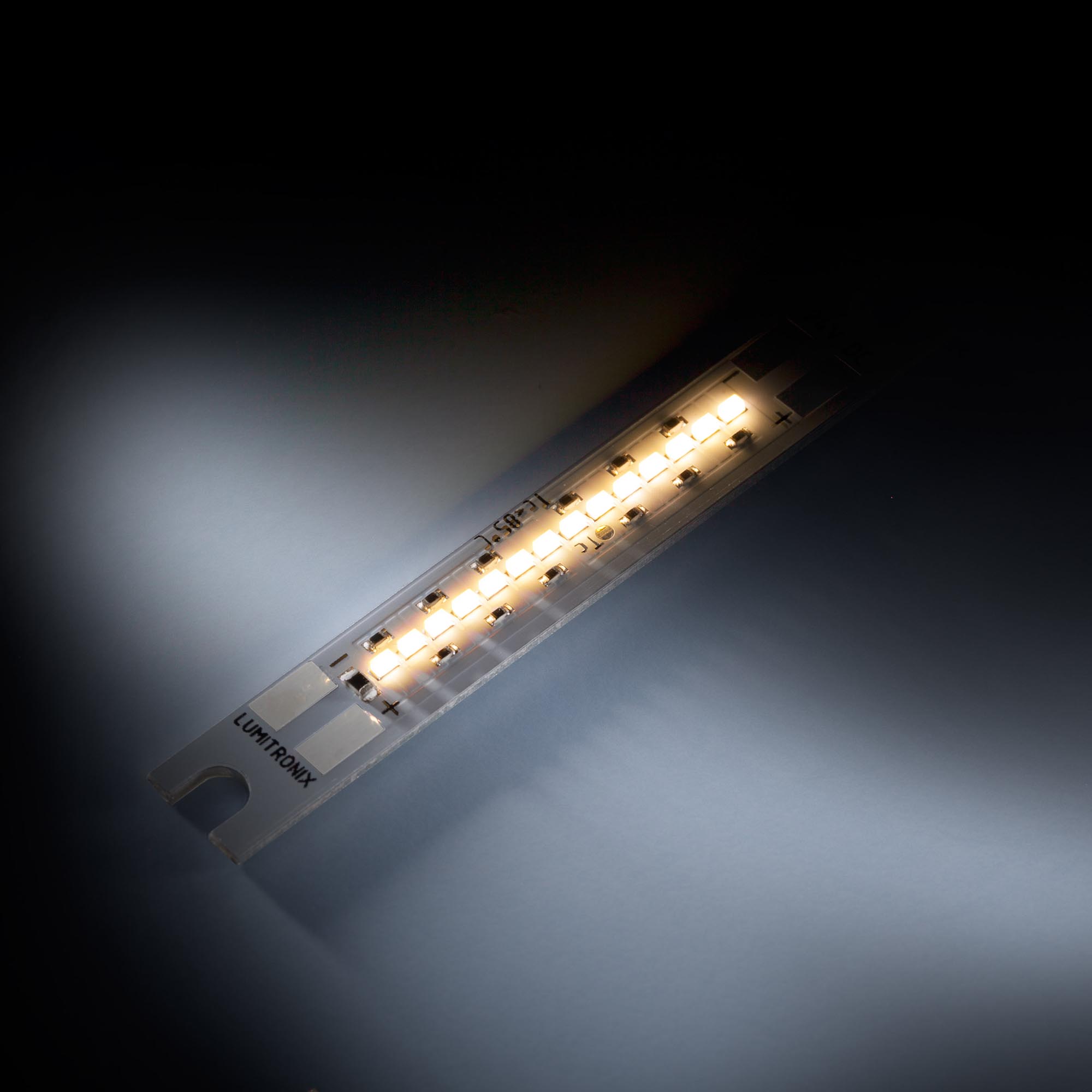

Nichia LED Module SmartArray 1.96" 24V 180 deg White 2700K 24V 3.6W 360lm
The SmartArray series is a product line aimed directly at the manufacturers of light fixtures. This series is distinguished by an excellent price-performance ratio, high efficiency and superb lighting properties. With the SmartArray at 24V, there are additional options when selecting an appropriate power supply.
Absolute easy installation is ensured using the recess for screw fastening. As an alternative, installation can also be carried out using a heat conducting adhesive pad. With the 14 Nichia LEDs, the LED module is just as bright as 25W however, only consumes 3.6W. The colour temperature is 2700K in the 3-step MacAdam binning. Moreover, customer-specific colour temperatures can be realised at any time upon request. The SmartArray 24V is excellently suitable for manufacturers of light fixtures thanks to the wide beam angle of 180°.
Features
- Colour temperature 2700K (warm white)
- 24V constant voltage LED module with 3.6W power
- Typical efficiency of up to 100lm/W
- Typical luminous flux of up to 360lm
- Natural colour reproduction with a CRI >80
- Very small dimensions: 1.96x0.27x0.06" (50x7x1.6mm)
- Double sided, heat conducting adhesive pad
- Easy attachment thanks to the recess for screw fastening
- Even white light through Nichia binning (3-step MacAdam)
- Long service life with 5-year warranty
- Replacement for COB modules
- Ideal for manufacturers of light fixtures and industrial applications
- 5 years warranty
| SKU | 53683 |
|---|---|
| Weight brut (g) | 1.000000 |
| Colour | Warm White |
| Colour Temperature | 2700K |
| Colour Rendering Index | 80 |
| Luminous Flux Typ (lm) | 360 |
| Efficacy (lm per W) | 100 |
| Power (W) | 3.6 |
| Viewing Angle | 180° |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 46 |
| Product lifetime (h) | 50000 |
| Lifetime for commercial, 12h daily (yrs) | 12 |
| Forward Current Max | 150 |
| Manufacturer Product Code | 53683 |
| Product Family | Smart Array LED strip |
| Strip Type | Rigid |
| Dimensions | 50x7x1.5 |
| Dimensions: Length (cm) | 5 |
| Dimensions: Width (mm) | 15 |
| Dimensions: Height (mm) | 0.70 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4260127455404 |
| Forward Voltage Typ (V) | 24 |
| Availability beyond shown stock: | NO |
