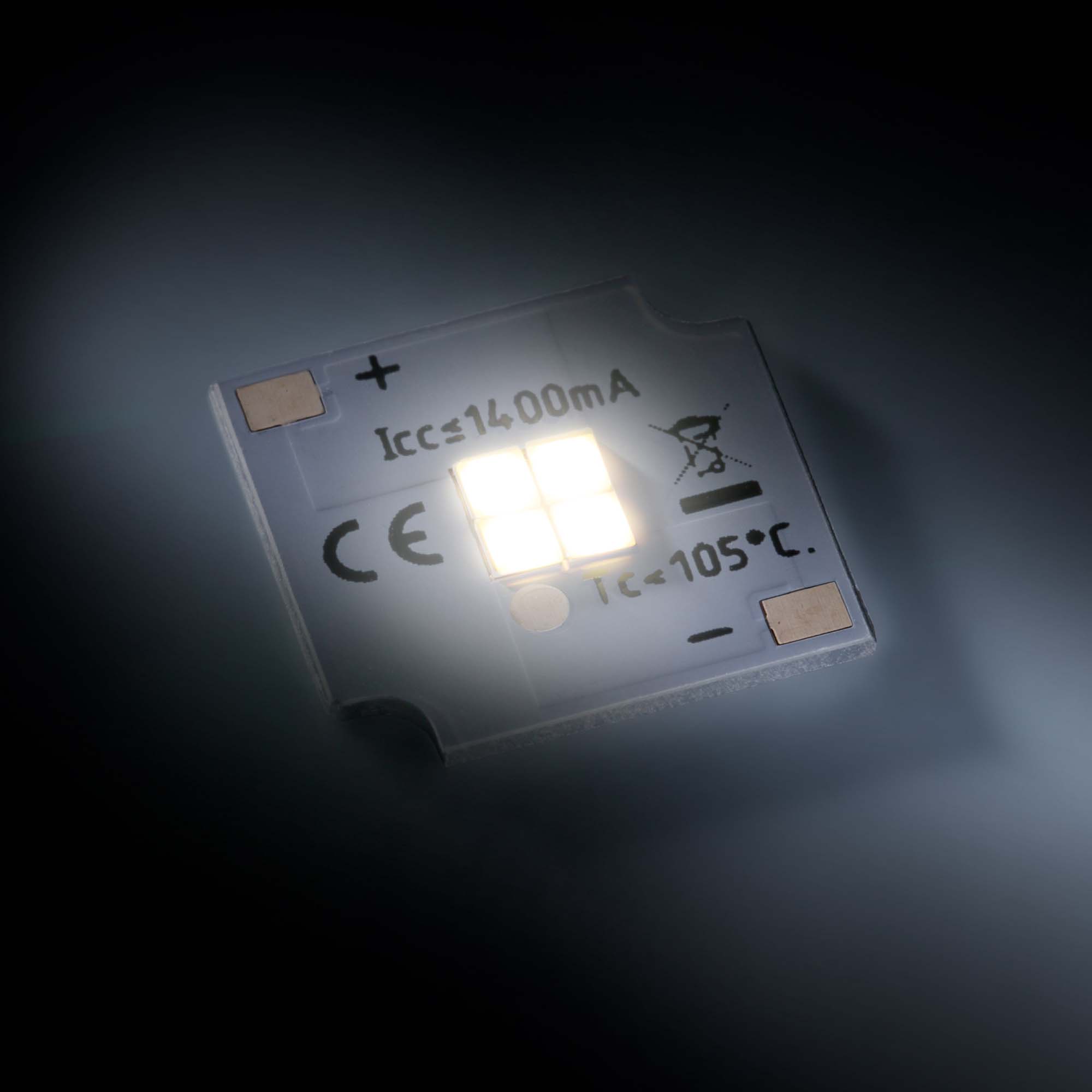

SmartArray Q4 4000K square 0.53" LED-Modul 530lm 4W
SmartArray - The Easy to install Power Light
The powerful SmartArray LED modules have been specially developed for use in high-intensity luminaires. They are specially designed to replace COB modules. Whether designer luminaire or industrial high-performance luminaire - the very flat and compact design of the new SmartArray module family allows simple installation in almost any luminaire design. The SmartArrays developed and produced in Germany are equipped with the outstanding LEDs of the world market leader Nichia and provide particularly natural light due to a high CRI value of typically 85. The SmartArray LED modules are also available with the innovative Dim2Warm and Tunable-White technology, which generate a particularly pleasant light spectrum especially in living and working areas.
Easy comparison thanks to the classification in the performance classes
Like conventional retrofit lamps, the modules are defined according to performance classes, which allows the easy comparison to conventional lamps. SmartArrays replace illuminants with a performance from 25 to 200 Watt.
Features
- 530lm from 4x E17A Nichia LEDs
- Pure white 4000K
- 700mA constant current module, at 5.8V
- 4W
- Easy attachment thanks to slot for fixing with screws
- Very efficient, light and homogeneous
- Very small dimensions: 0.53x0.51x0.05" (13.5x13x1.4mm)
- Very slim
- 3 years warranty
- Replacement for lamps, COB modules and other pinpoint light sources
- High compatibility with accessories
- Excellent price/performance ratio
- Wide range of various sizes and equipping
- 480lm from 4x E17A Nichia LEDs
- Warm white 2700K
- 700mA constant current module, at 5.8V
- 4W
| SKU | 30773 |
|---|---|
| Weight brut (g) | 1.000000 |
| Colour | Neutral White |
| Colour Temperature | 4000K |
| Colour Rendering Index | 80 |
| Luminous Flux Typ (lm) | 530 |
| Efficacy (lm per W) | 133 |
| Energy Class 2022 | E |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 55 |
| Product lifetime (h) | 60000 |
| Lifetime for commercial, 12h daily (yrs) | 14 |
| Manufacturer Product Code | 30773 |
| Product Family | Smart Array LED strip |
| Strip Type | Rigid |
| Dimensions | 13.5x13x1.1 |
| Dimensions: Length (cm) | 1.35 |
| Dimensions: Width (mm) | 13 |
| Dimensions: Height (mm) | 1.1 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4260127453806 |
| Forward Voltage Typ (V) | 5.8 |
| Availability beyond shown stock: | NO |
