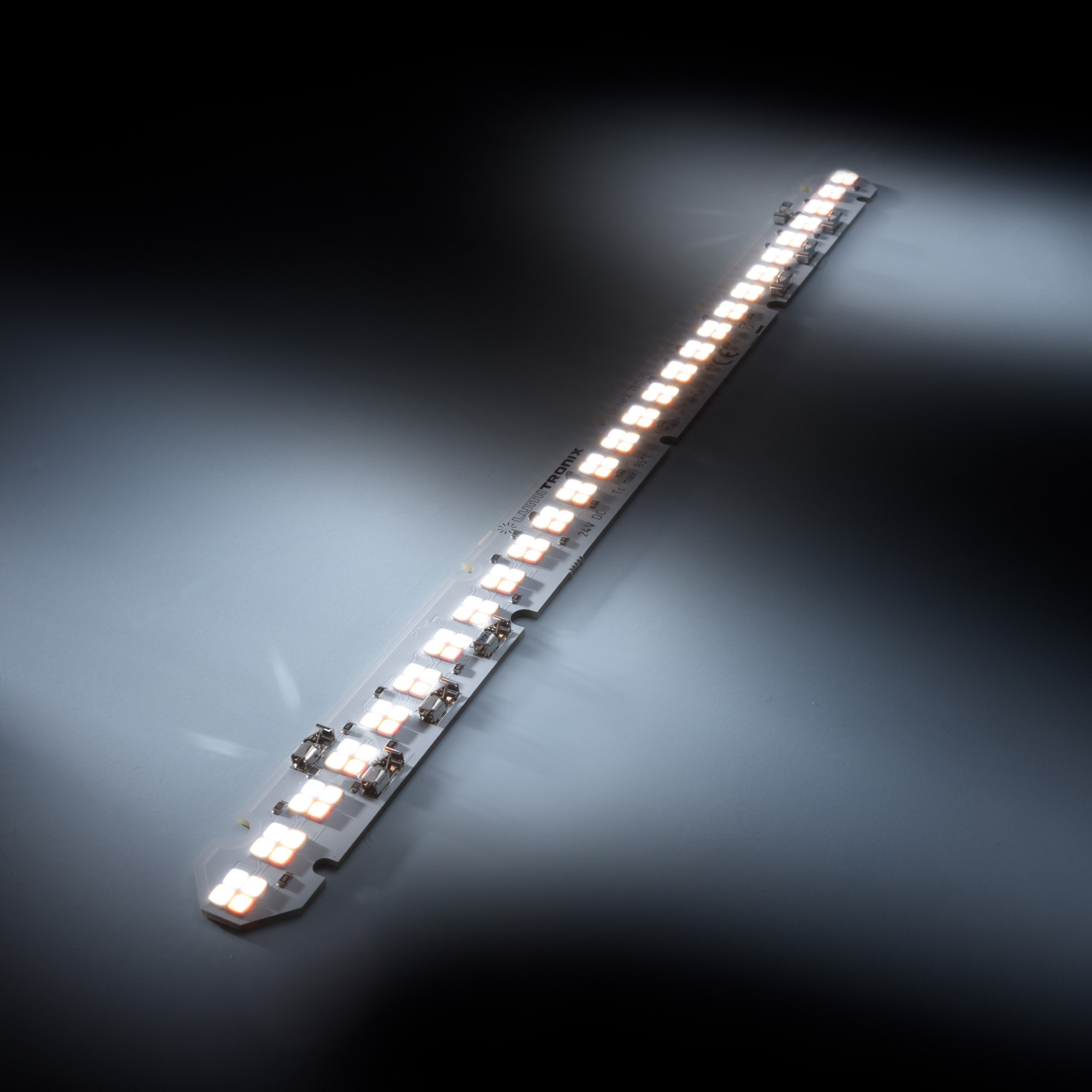

LumiBarTW-112-4090+ Nichia H6 Series TW LED Strip Zhaga CRI92 TriGain white 2000+4000+6500K 1140lm 24V 112 LEDs 28cm module
- LED Module with CRI92, for professional use that requires the very good color rendering with vibrant Red colors
- TW, 3 channel, 2000-4000-6500K module designed for general or task lighting luminaires (4000 lm/m)
- High efficacy, up to 171 lm/W
- Solderless installation and form in accordance with Zhaga standard
High colour rendering index paired with highest efficiency

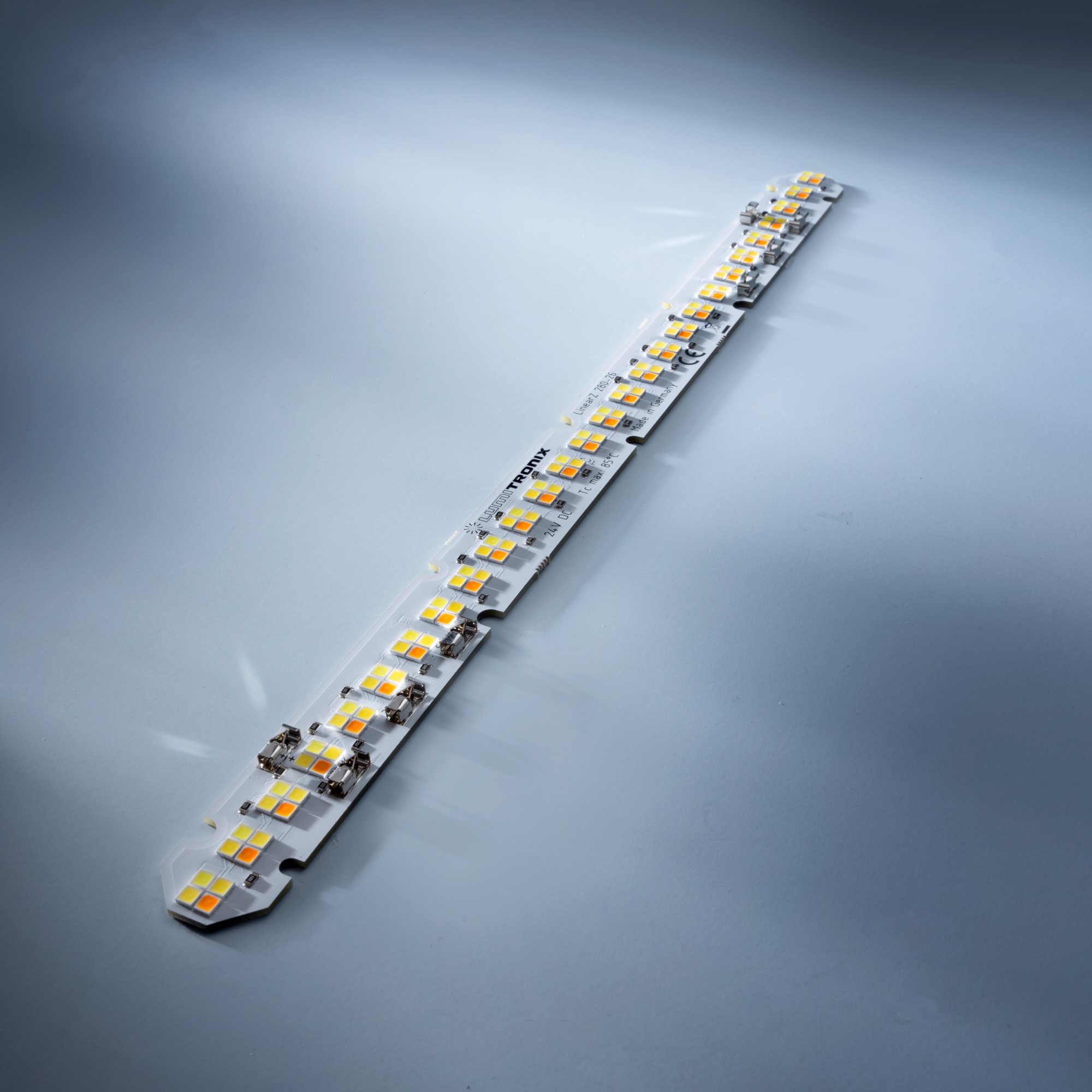

This LumiBarTW module has a length of 280 mm and is equipped with 112 LEDs from Nichia in colour temperatures of 2000, 4000 and 6500 K. Thanks to its Zhaga-compatible design, the Tunable White LED module can be easily used in many luminaires and also requires no additional cooling.
Circadian Tunable White - light progression like that of the sun
The LumiBarTW module is equipped with 112 LEDs from Nichia's 757 family. 84 LEDs are from the H6 series and have a colour temperature of 4000K and respectively 6500 K. They use special TriGain phosphor technology, for a high CRI of 92. The other 28 LEDs have a colour temperature of 2000 K and a CRI of 90.
Thanks to the three different colour temperatures, the natural light of the sun can be reproduced realistically. Starting with cool white light in the morning to warm tones at dusk - the Circadian Tunable White LED module ensures an ideal colour gradient very close to Planck's curve.
Patented phosphor technology for highest efficiency with excellent light quality
The special H6 series LEDs use TriGain phosphor technology of the light-emitting diodes that allows extremely high efficiency with a colour rendering index of at least 92, which was previously only possible with a CRI of at least 80.
This means that the LumiBarTW module already achieves energy efficiency class B in accordance with the Energy Labelling Regulation (EU) 2019/2015, thus enabling significant energy savings.
Features of the LED strip LumiBarTW-112-4090+ H6 Series 2000-6500K Circadian Tunable White, CRI>92 TriGain, 24V
- 112 LEDs of the Nichia 757 family (4000 K & 6500 K from the H6 series with TriGain phosphor technology)
- Luminous flux up to 1140 lm at 4000K, 520 lm at 6500K, 510 lm at 2000K
- Colour temperature: 2000 - 6500 K (Tunable White)
- Circadian Tunable White - three different colour temperatures for a natural colour gradient like sunlight
- TriGain phosphor technology with CRI92+
- Energy efficiency class B (Energy Labelling Regulation (EU) 2019/2015)
- Designed according to the Zhaga standard (Book 7 L28W2)
- Constant voltage mode 24VDC
- Dimmable
- Solderless connection
- No heat sink required
- No light spots thanks to narrow mounting
- 3-Step MacAdam Binning
- Dimensions (L x W x H): 279.5 x 20 x 4.57 mm (10.98"x0.786"x0.179")
- Made in Germany
- 5 years warranty
Applications
- Luminaires in the commercial sector
- General lighting in the medical sector
| SKU | 38562 |
|---|---|
| Weight brut (g) | 20.000000 |
| Colour | Tunable White |
| Colour Rendering Index | 92 |
| Luminous Flux per meter | 4000 |
| Bright like (W) | 334 |
| Luminous Flux Typ (lm) | 1140 |
| Efficacy (lm per W) | 171 |
| Energy Class 2022 | B |
| Power (W) | 6.7 |
| Dimmable | Tunable White, Dimmable |
| Viewing Angle | 120° |
| Warranty (months) | 60 |
| Lifetime for residential, 3h daily (yrs) | 60 |
| Product lifetime (h) | 60000 |
| Lifetime for commercial, 12h daily (yrs) | 18 |
| Manufacturer Product Code | 38562 |
| Product Family | LumiBarTW |
| Strip Type | Rigid |
| LEDs number per sales unit | 112 |
| Dimensions | 280x20x4.57 |
| Dimensions: Length (cm) | 28 |
| Dimensions: Width (mm) | 20 |
| Dimensions: Height (mm) | 4.57 |
| Brand | Lumistrips |
| Manufacturer Part Number | 4062986002498 |
| Forward Voltage Typ (V) | 24 |
