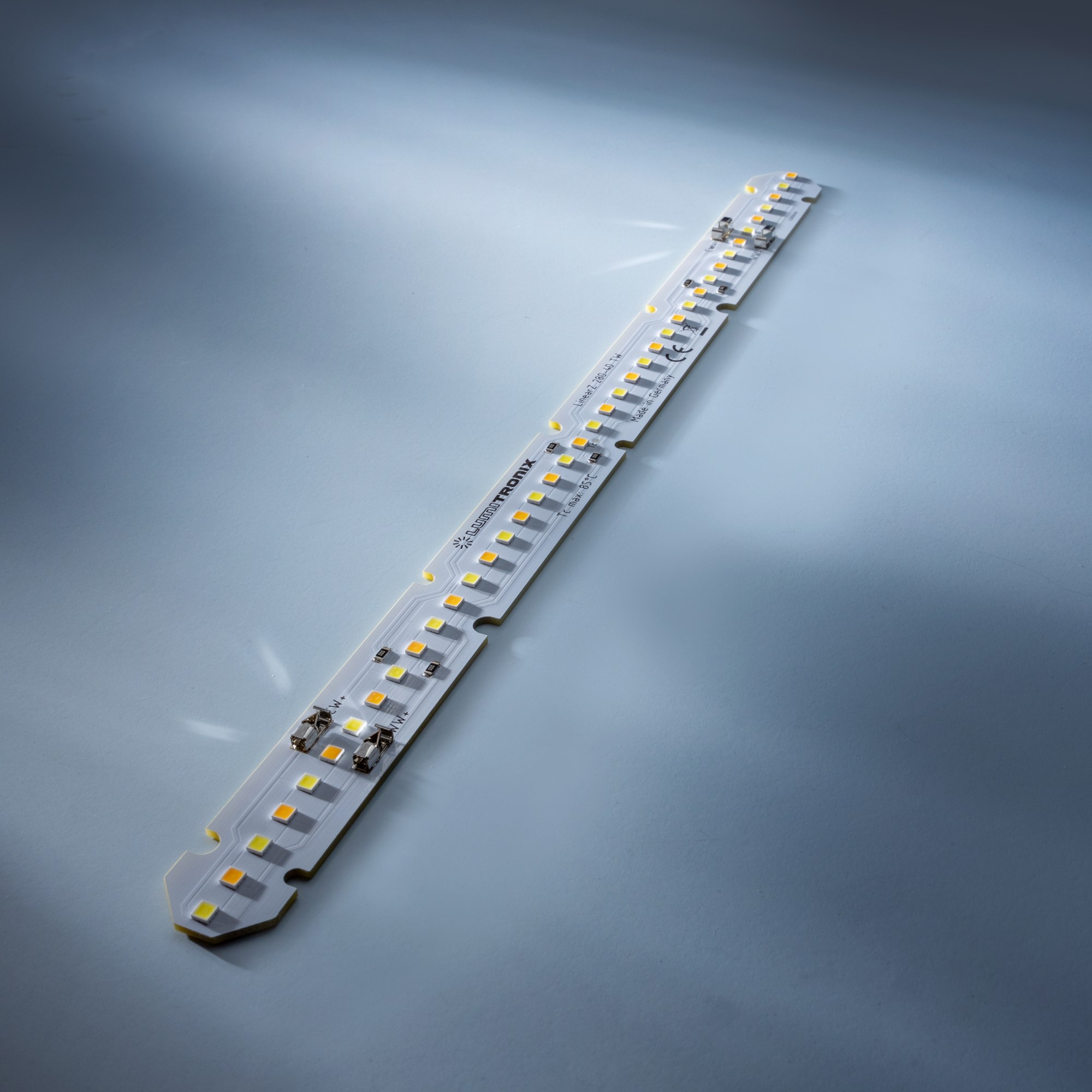

LumiBarTW-40-4090 Nichia H6 Series LED Module 2700K-5000K Tunable White CRI90 TriGain 953lm
LumiBarTW-40-4090 Nichia H6 Series LED Module 2700K-5000K Tunable White CRI90 TriGain 953lm NICHIA H6 LED Series

LumiBarTW-40-4090 Nichia H6 Series LED Module 2700K-5000K Tunable White CRI90 TriGain 953lm

£11.41
Stock >100 pcs
SKU
38560

The LumiBarTW-40-4090 is an ultra-high-efficacy, two-channel tunable-white rigid LED module engineered for commercial, medical, and architectural luminaires that require dynamic 2700 K to 5000 K white tuning without sacrificing energy efficiency or CRI 90+ color quality.

  • Tunable white from 2700 K warm white to 5000 K pure neutral white
  • 40 genuine Nichia H6 Series LEDs with TriGain phosphor technology for CRI 90+ color rendering at industry-leading efficacy
  • High luminous output & efficacy: up to 953 lm (~193 lm/W) at 5000 K and approx. 864 lm (~175 lm/W) at 2700 K
  • Two-channel constant-current operation at 350 mA (approx. 14.5 V forward voltage per channel) with 3-Step MacAdam binning
  • Standardized Zhaga Book 7 (IEC 63356-2) L28W2 mechanical form factor: 11 × 0.79 × 0.18 in
  • Solderless push-in wire terminals for rapid series daisy-chaining and maintenance
  • Thermally optimized rigid PCB designed to operate without an additional heat sink in standard luminaire housings
  • Precision engineered and Made in Germany

The LumiBarTW-40-4090 is an ultra-high-efficacy, two-channel tunable-white rigid LED module engineered for commercial, medical, and architectural luminaires that require dynamic 2700 K to 5000 K white tuning without sacrificing energy efficiency or CRI 90+ color quality. Powered by 40 genuine Nichia H6 Series LEDs featuring TriGain narrow-band red phosphor technology, it achieves up to ~193 lm/W at 5000 K (953 lm) and ~175 lm/W at 2700 K (864 lm).

Built on a rigid 11 × 0.79 × 0.18 in PCB conforming to the Zhaga Book 7 L28W2 standard, it operates on two regulated 350 mA constant-current channels (~14.5 V forward voltage) with 3-Step MacAdam color consistency, solderless push-in terminals, and no additional heat sink required in intended luminaire configurations.

Features of the LumiBarTW-40-4090 Nichia H6 TriGain tunable-white module

  • Tunable white from 2700 K warm white to 5000 K pure neutral white—learn more in our color temperature guide
  • 40 genuine Nichia H6 Series LEDs with TriGain phosphor technology for CRI 90+ color rendering at industry-leading efficacy
  • High luminous output & efficacy: up to 953 lm (~193 lm/W) at 5000 K and approx. 864 lm (~175 lm/W) at 2700 K
  • Two-channel constant-current operation at 350 mA (approx. 14.5 V forward voltage per channel) with 3-Step MacAdam binning
  • Standardized Zhaga Book 7 (IEC 63356-2) L28W2 mechanical form factor: 11 × 0.79 × 0.18 in
  • Solderless push-in wire terminals for rapid series daisy-chaining and maintenance
  • Thermally optimized rigid PCB designed to operate without an additional heat sink in standard luminaire housings
  • Precision engineered and Made in Germany
  • Backed by a 5-year commercial warranty

Human-centric tunable lighting for commercial and clinical spaces

The 2700–5000 K tunable range enables seamless human-centric lighting transitions across corporate offices, hospitals, dental suites, classrooms, and hospitality interiors—delivering energizing 5000 K task illumination during peak hours and comfortable 2700 K warmth in the evening while maintaining CRI 90+ accuracy for skin tones and finishes. See our CRI guide for details.

Architectural linear luminaires, coves, and diffuse fixtures

Designed for professional linear luminaires, architectural cove lighting, and troffers and diffuse ceiling luminaires, the rigid 11 in PCB ensures straight, repeatable placement and uniform diffusion. Review our linear fixture design guide for optical spacing recommendations.

Built around the Zhaga Book 7 linear-module standard (IEC 63356-2)

The mechanical geometry of this LumiBar module is engineered around the Zhaga Book 7 standard for linear and square LED modules (published internationally as IEC 63356-2), conforming to the L28W2 form-factor category (11 × 0.79 × 0.18 in actual PCB dimensions within the 11.02 in × 0.79 in standardized envelope). Zhaga Book 7 defines standardized mechanical outlines, mounting-hole positions, thermal interface planes, and optical keep-out zones so luminaire manufacturers and OEMs can design housings, reflectors, and diffusers around an open global industry standard rather than a proprietary PCB footprint.

Because the LumiBar portfolio scales across the modular Zhaga Book 7 length grid—L14W2 (5.51 in class), L28W2 (11.02 in class), and L56W2 (22.05 in class)—fixture builders can create multiple luminaire lengths (such as 1 ft, 2 ft, 4 ft, and 8 ft linear fixtures) using a single standardized mechanical cross-section and mounting architecture. Its standardized 11.02 in × 0.79 in form factor allows luminaire OEMs to integrate high-efficacy Nichia H6 tunable-white engines directly into existing Zhaga-compliant linear extrusions and troffer chassis.

In accordance with Zhaga Book 7, these modules are non-integrated LED light engines operated from a separate external LED driver, ensuring future-proof serviceability and effortless component upgrades over the life of the luminaire. While Zhaga Book 7 guarantees mechanical and photometric envelope interoperability across compliant modules, electrical operating points (drive current/voltage), luminous flux, and efficacy remain product-specific—so always verify driver specifications, connector pinouts, and thermal limits when specifying or replacing modules.

Two-channel constant-current electrical integration

Each white channel requires a regulated 350 mA constant-current LED driver channel (~14.5 V forward voltage per module). Use a compatible two-channel tunable-white constant-current driver (such as DALI DT8 or dual-channel 0–10 V) sized for the total series forward voltage of the connected modules.

Who we are and our German quality promise

With over 20 years of specialized experience in LED technology, we engineer and manufacture professional LED strips, modules, and custom light engines in Germany. Our rigid and flexible LED light engines are produced in our state-of-the-art, ISO 9001, ISO 14001, and ISO 45001 certified German LED manufacturing and Reel-to-Reel (R2R) production facility, utilizing automated DEK solder paste printing with HawkEye optical inspection and precision <0.4 mil (<0.0004 in) laser/inkjet batch traceability to guarantee unmatched mechanical durability, honest datasheet ratings, and batch-to-batch consistency.

Whereas low-cost commodity LED strips and boards often suffer from rapid lumen depreciation—losing up to 60% of their brightness within 10,000 hours—and deliver under 80 lm/W in real-world operation, our German-engineered LumiBar modules combine top-tier LEDs from world-leading manufacturers with precision PCB engineering to deliver three to five times higher effective illumination and dependable long-term performance. Beyond our ready-to-ship portfolio, we support OEMs, luminaire manufacturers, and commercial project teams with custom PCB layouts, specialized spectra, prototyping, and full-scale series production. Learn more about Lumistrips and our German LED manufacturing capabilities.

Technical Data
SKU 38560
Weight brut (g) 20.000000
Colour Tunable White
Colour Rendering Index 90
Luminous Flux per meter 3400
Bright like (W) 284
Luminous Flux Typ (lm) 953
Energy Class 2022 A
Viewing Angle 120°
Warranty (months) 36
Manufacturer Product Code 38560
Product Family LumiBarTW
Strip Type Rigid
LEDs number per sales unit 40
Dimensions: Length (cm) 28
Dimensions: Width (mm) 20
Dimensions: Height (mm) 1.55
Brand Lumistrips
Manufacturer Part Number 4062986002481
Forward Voltage Typ (V) 14.53
